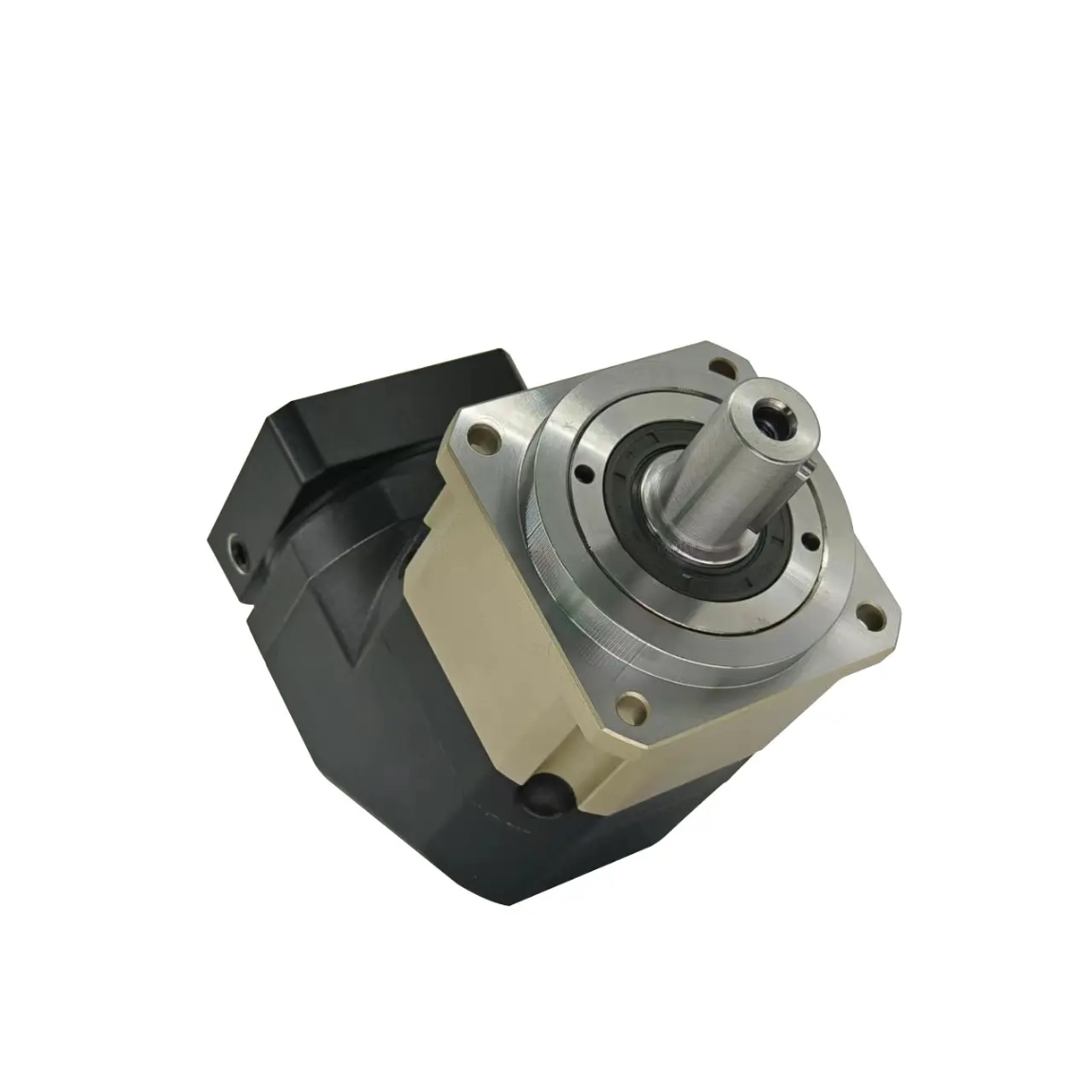

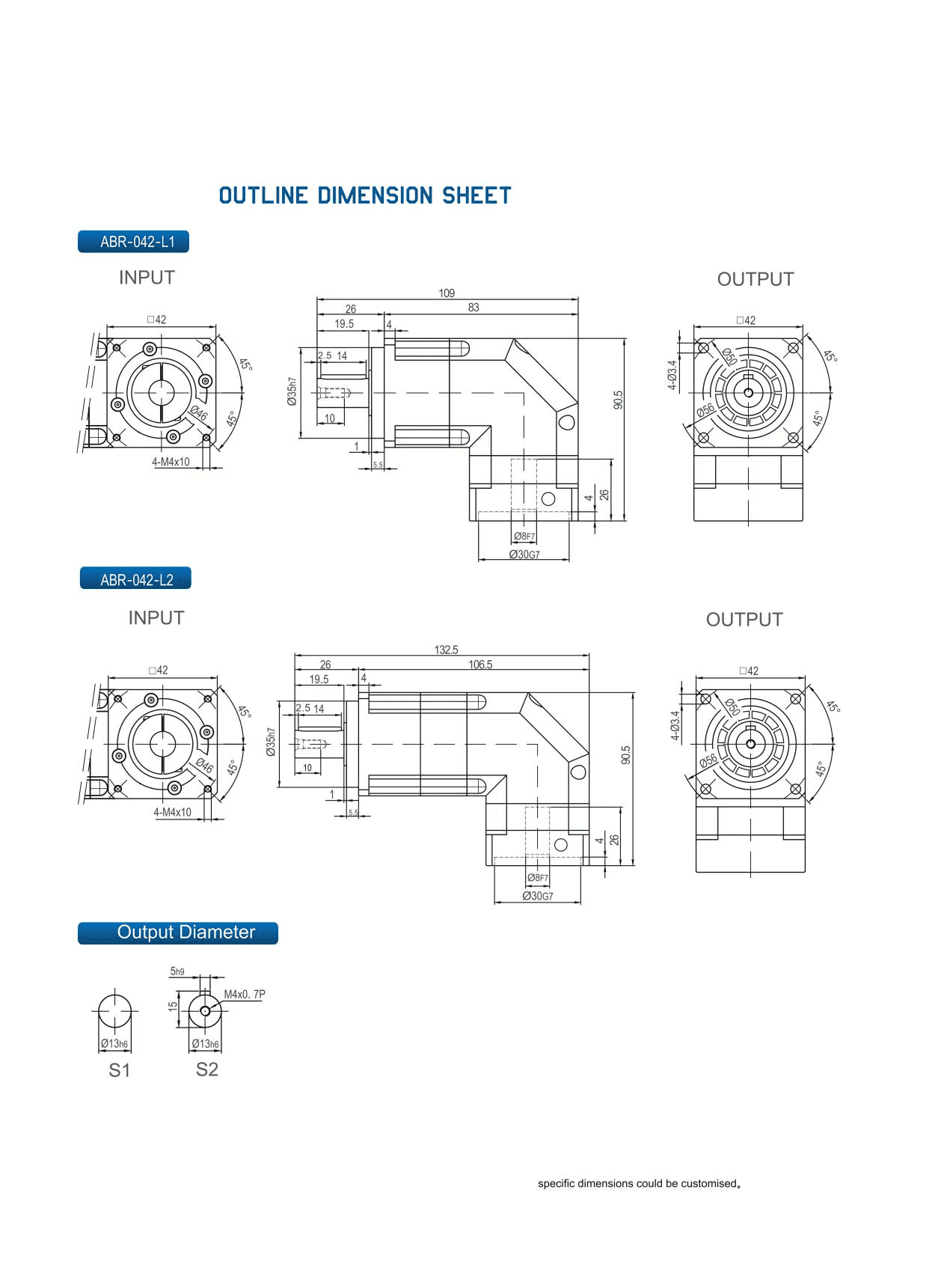

Precision planetary gearbox ABR (1)

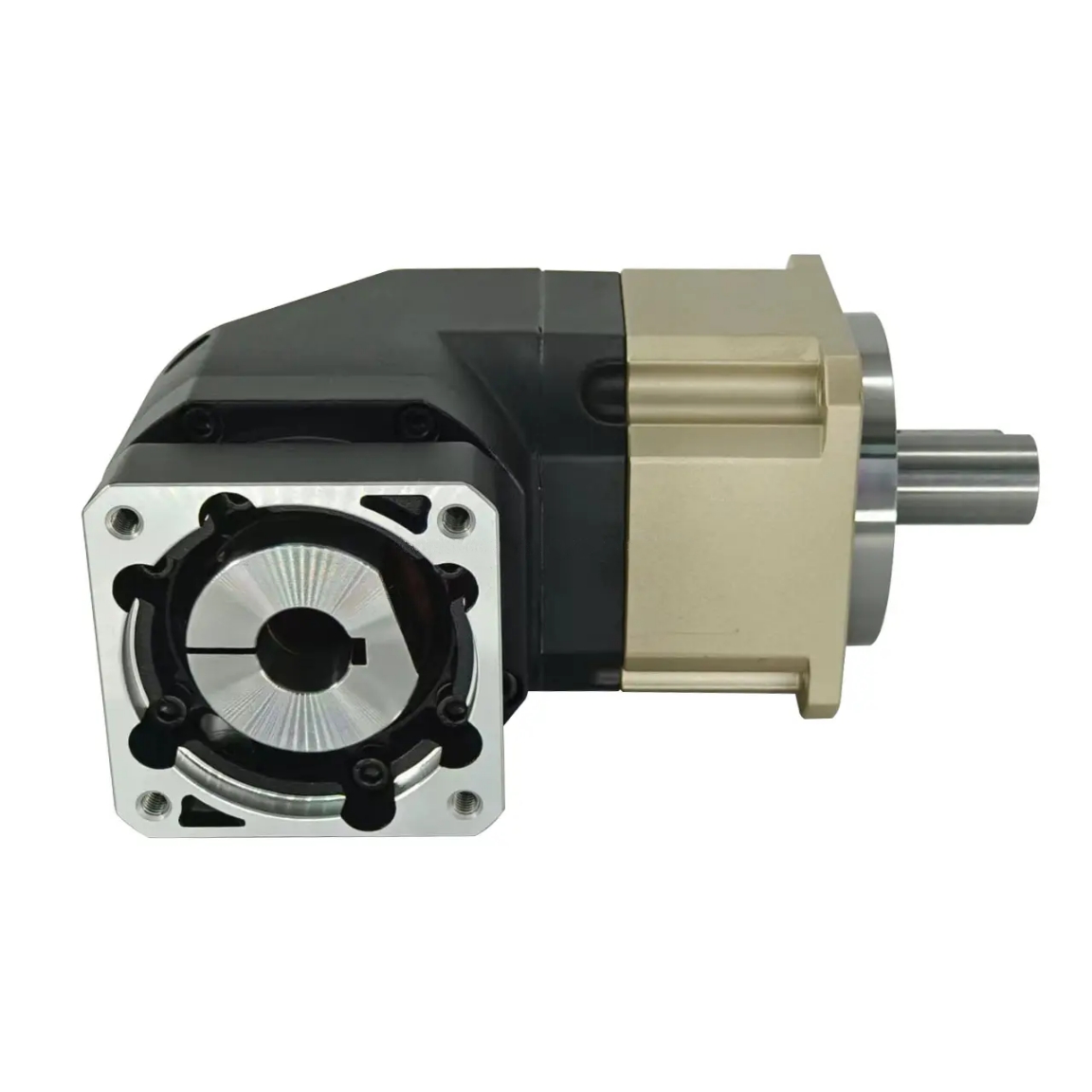

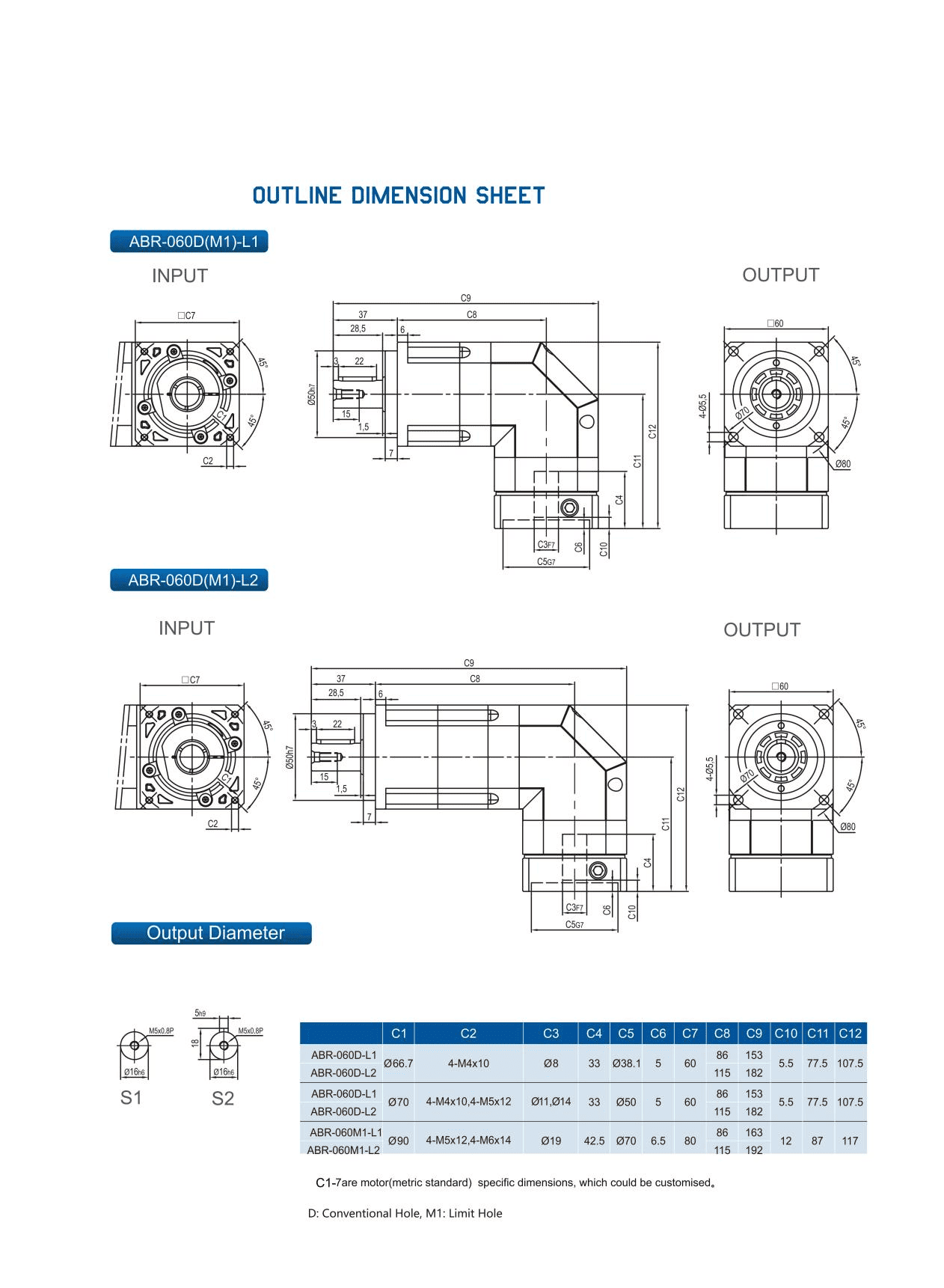

Precision planetary gearbox ABR (2)

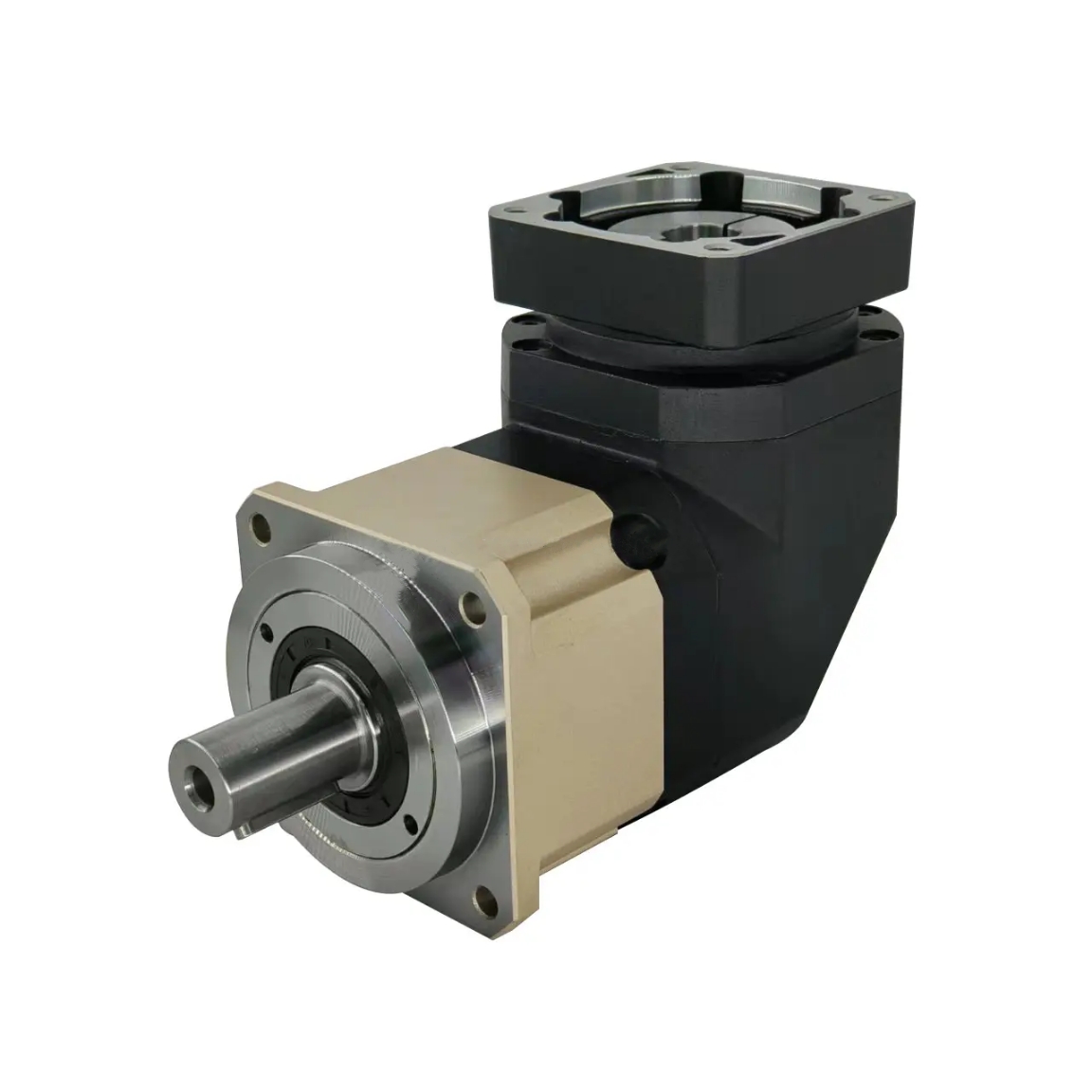

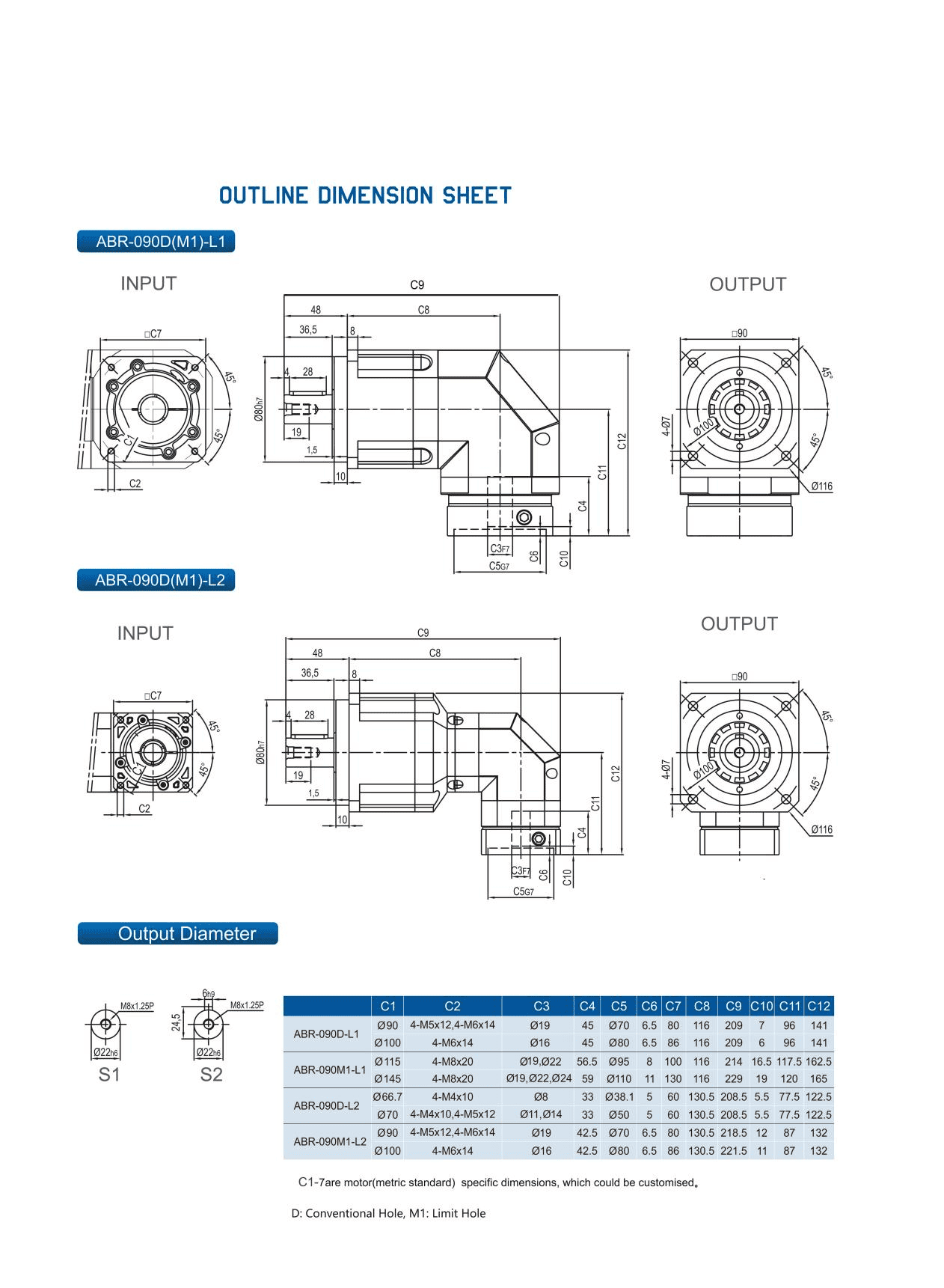

Precision planetary gearbox ABR (3)

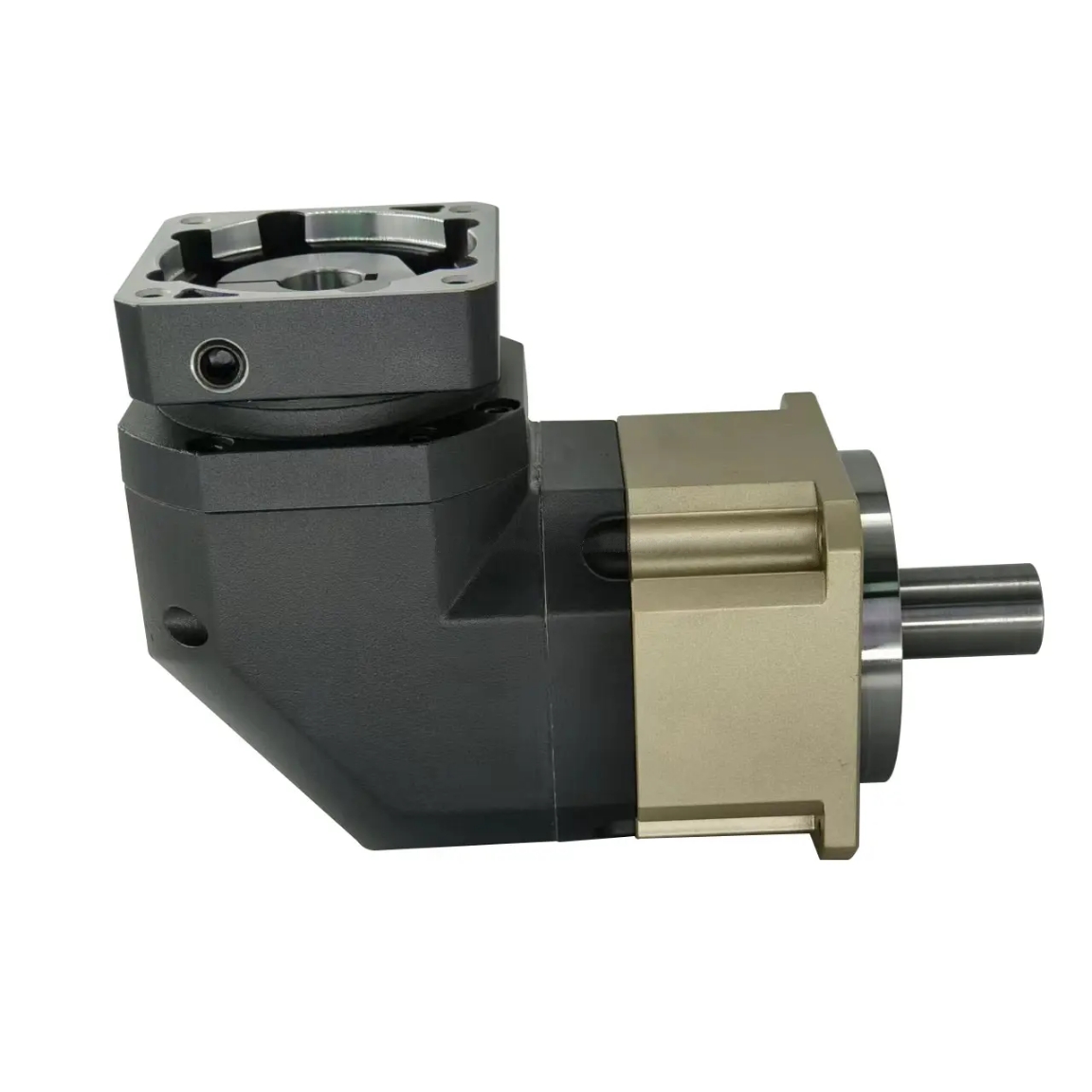

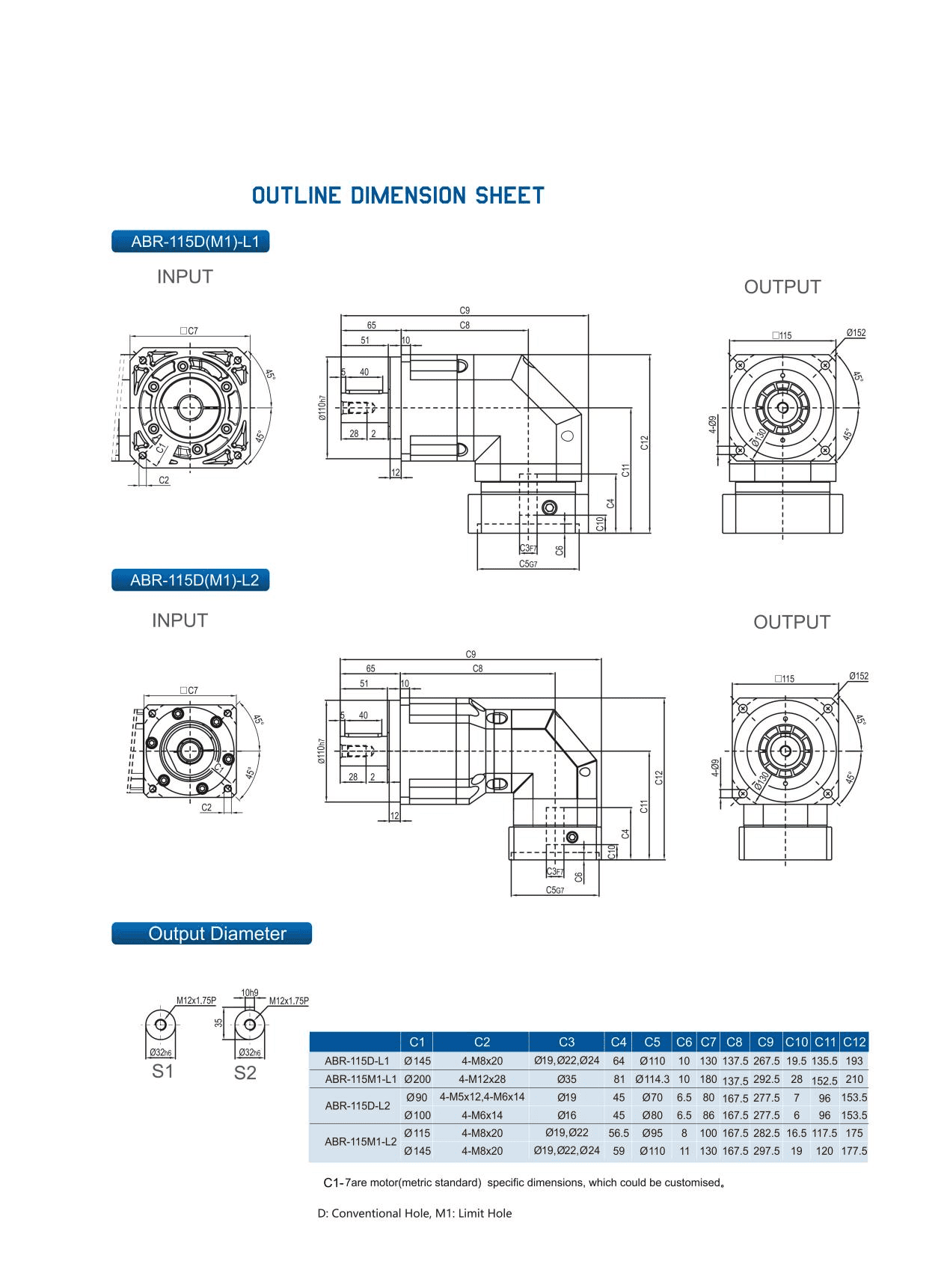

Precision planetary gearbox ABR (4)

Precision Planetary Gearbox ABR

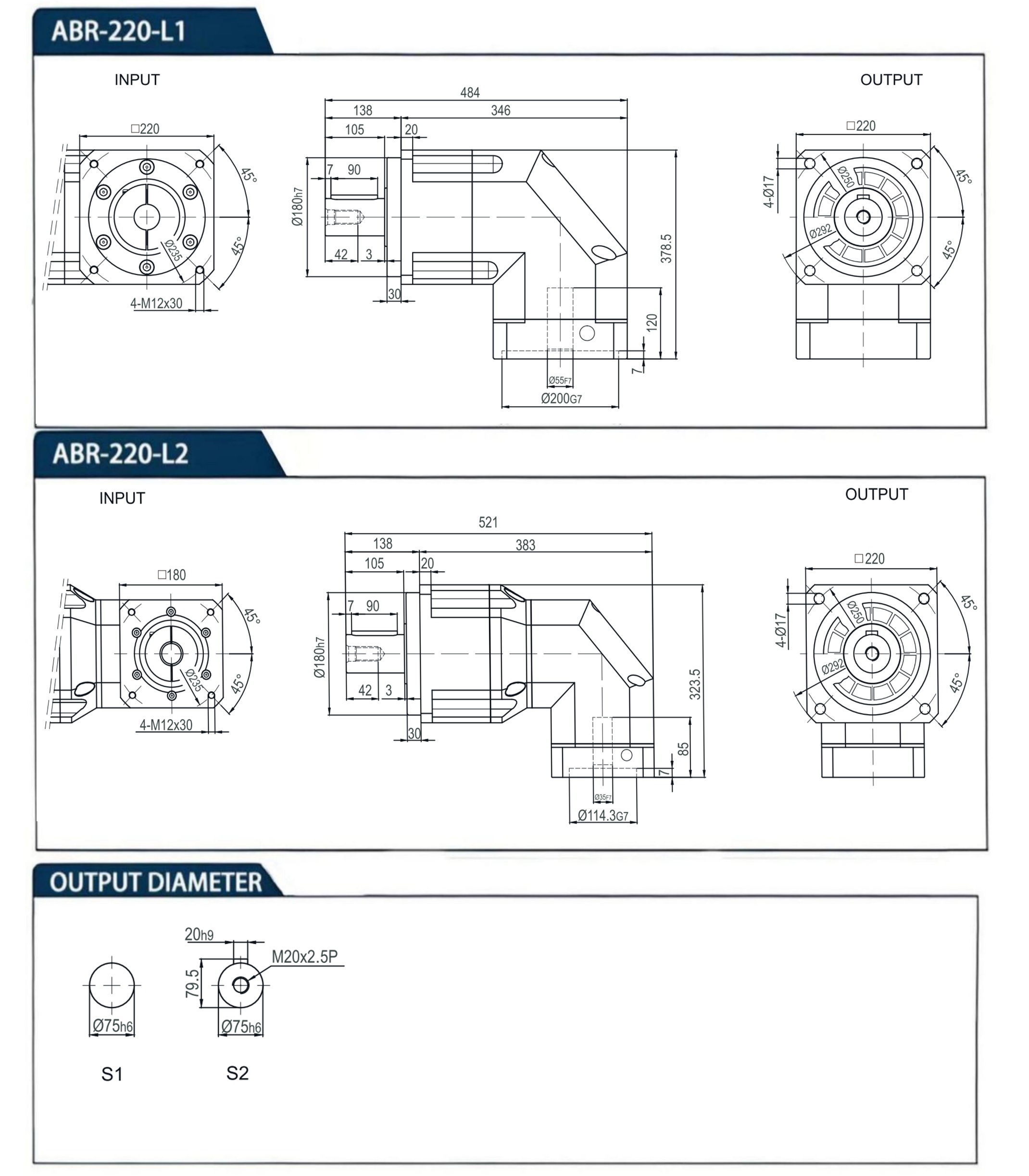

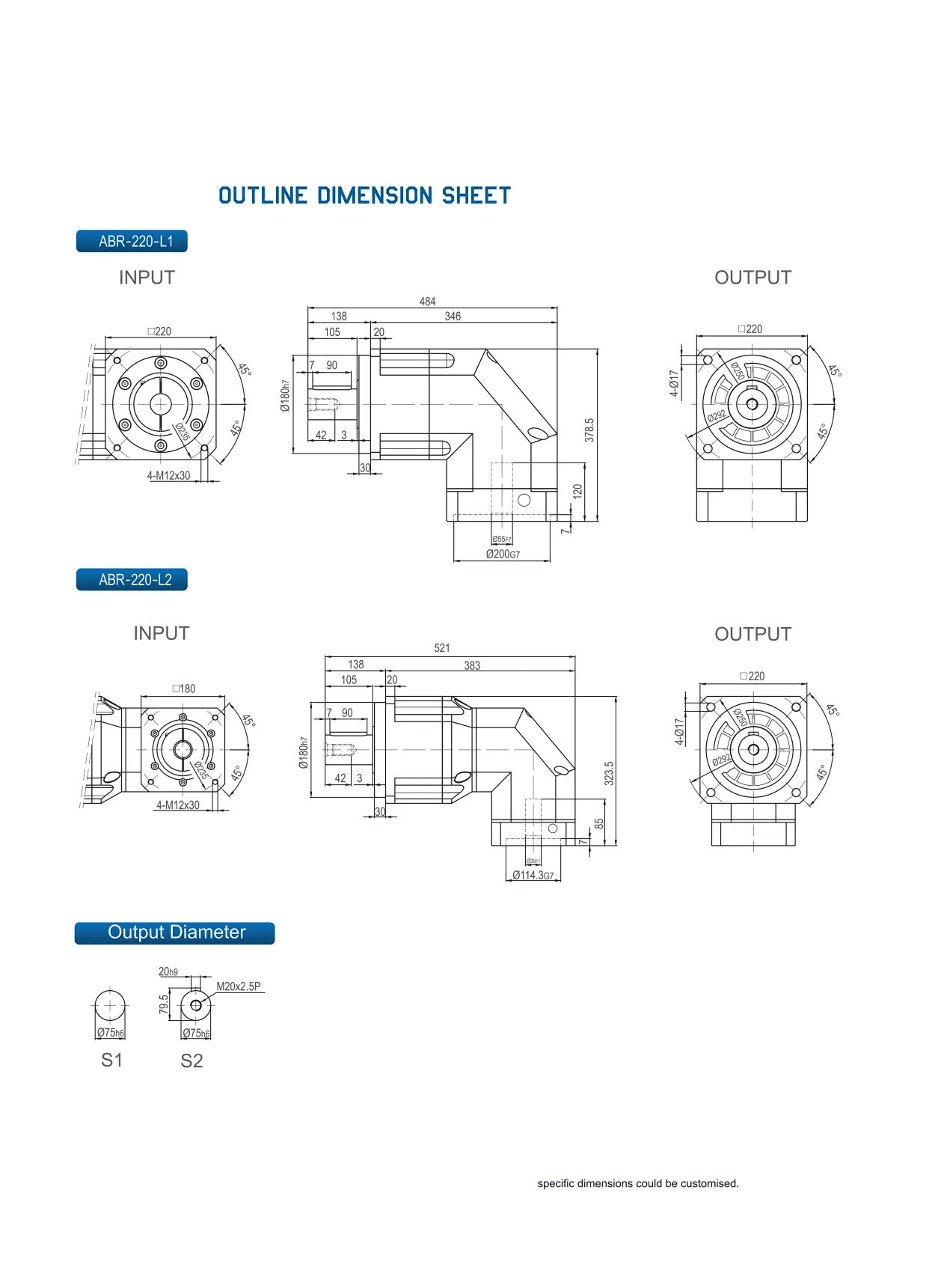

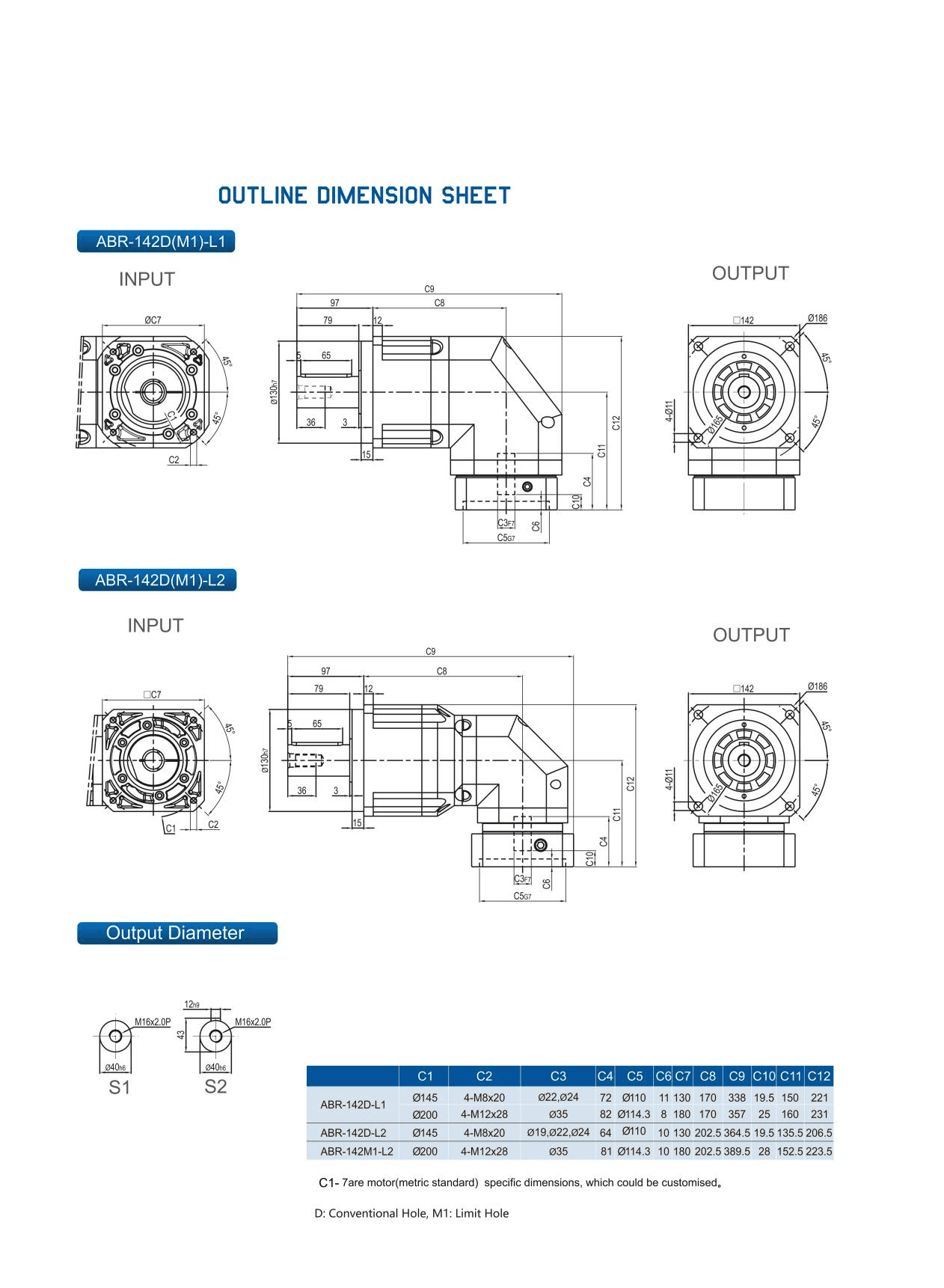

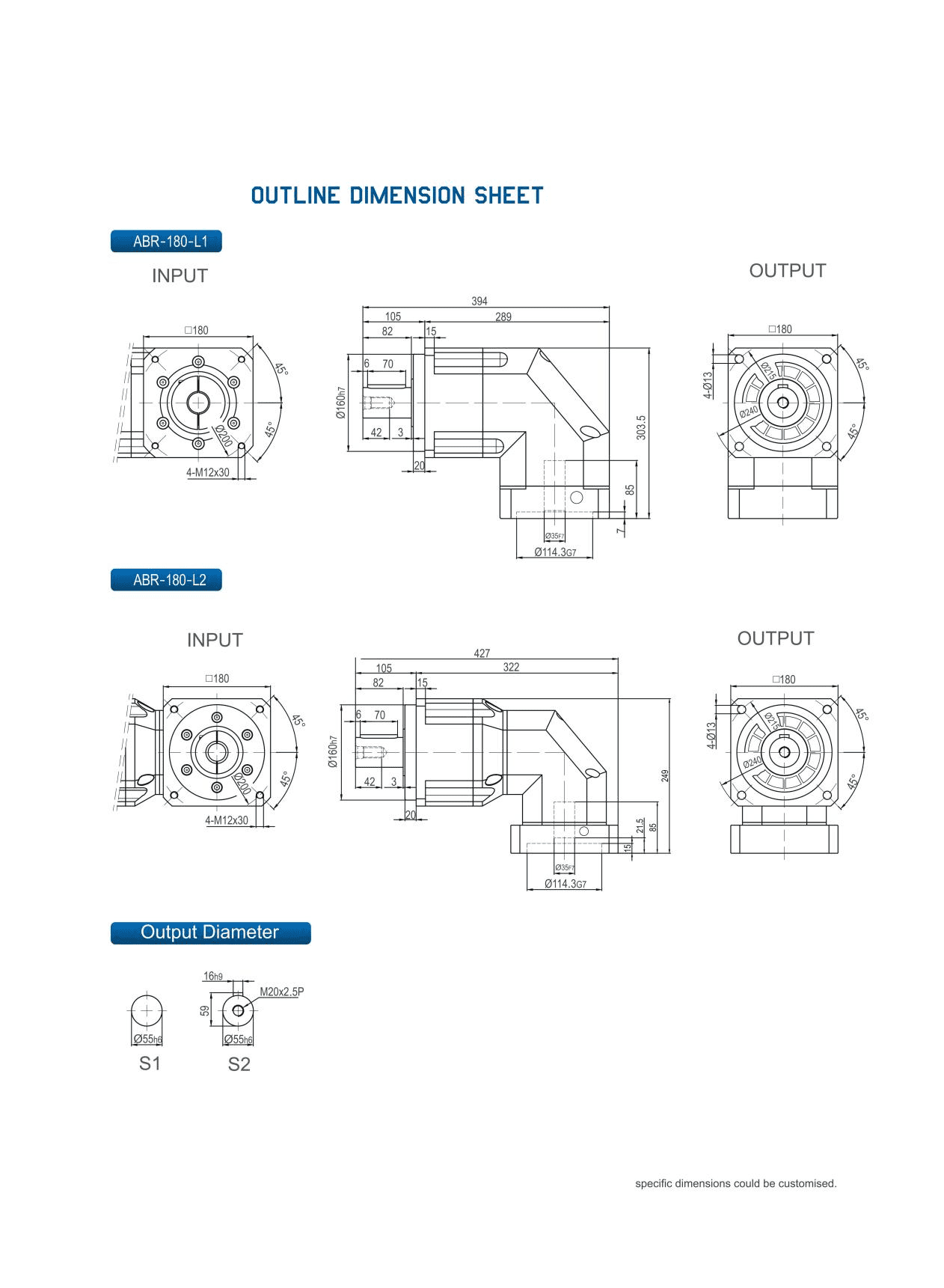

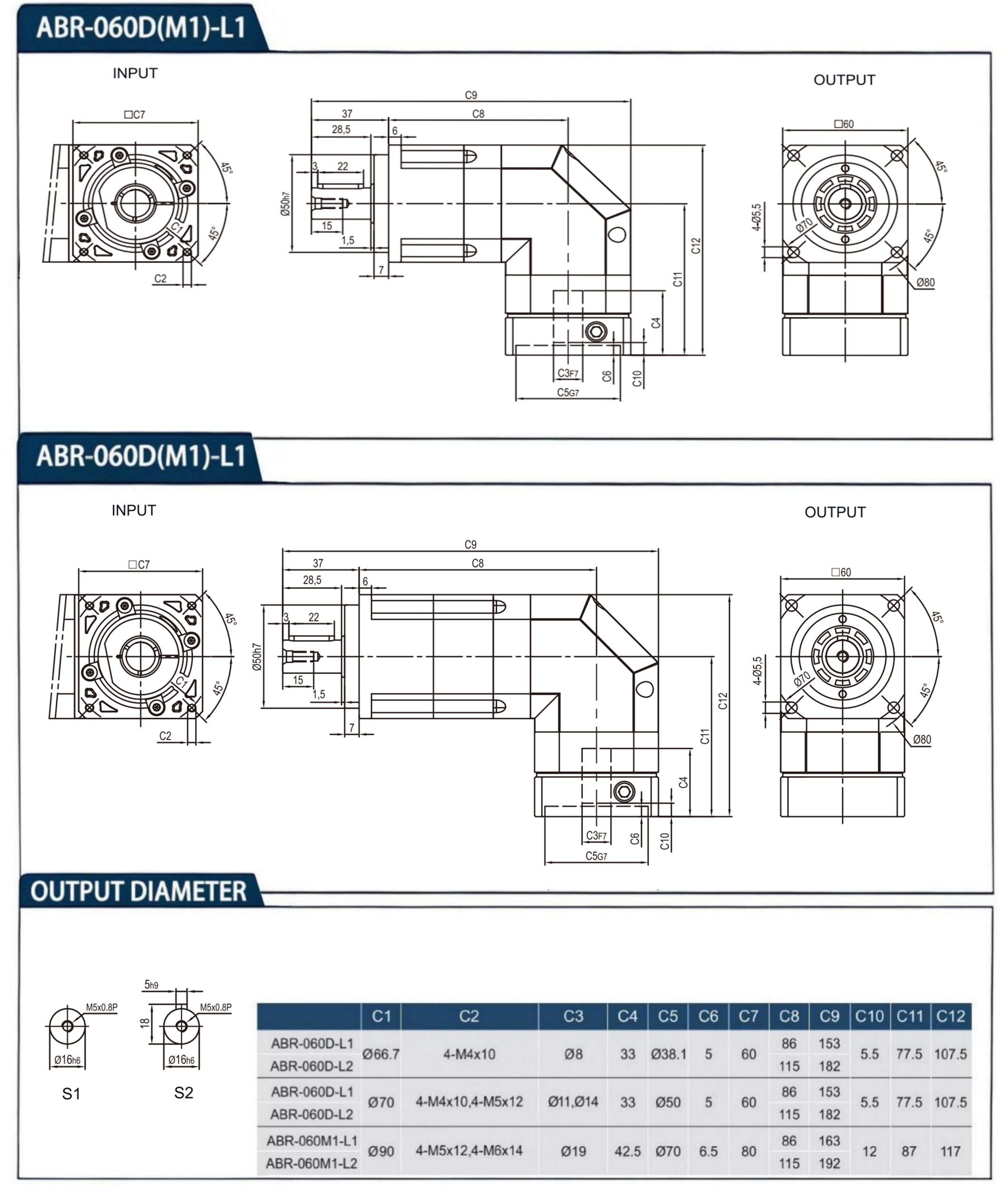

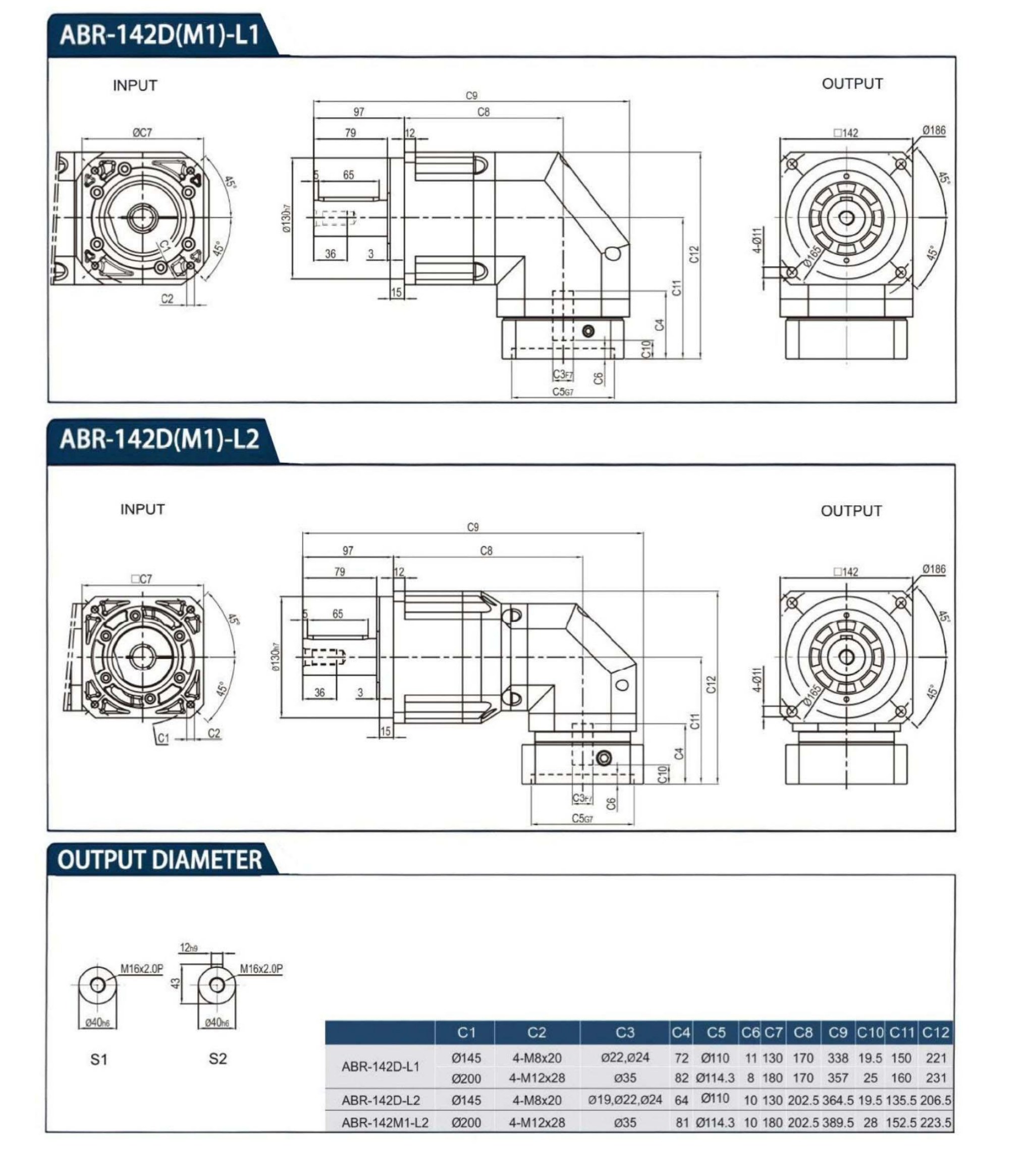

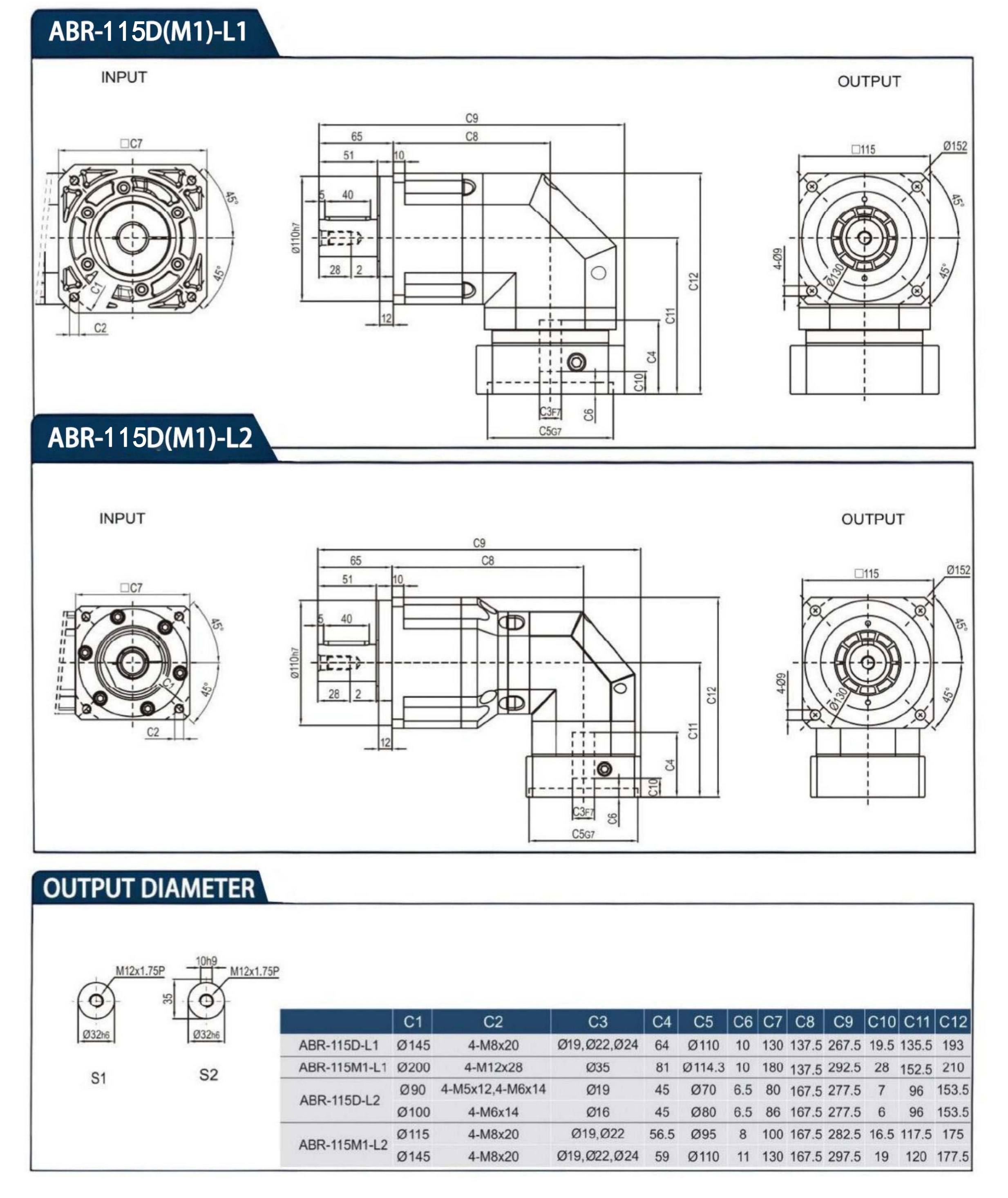

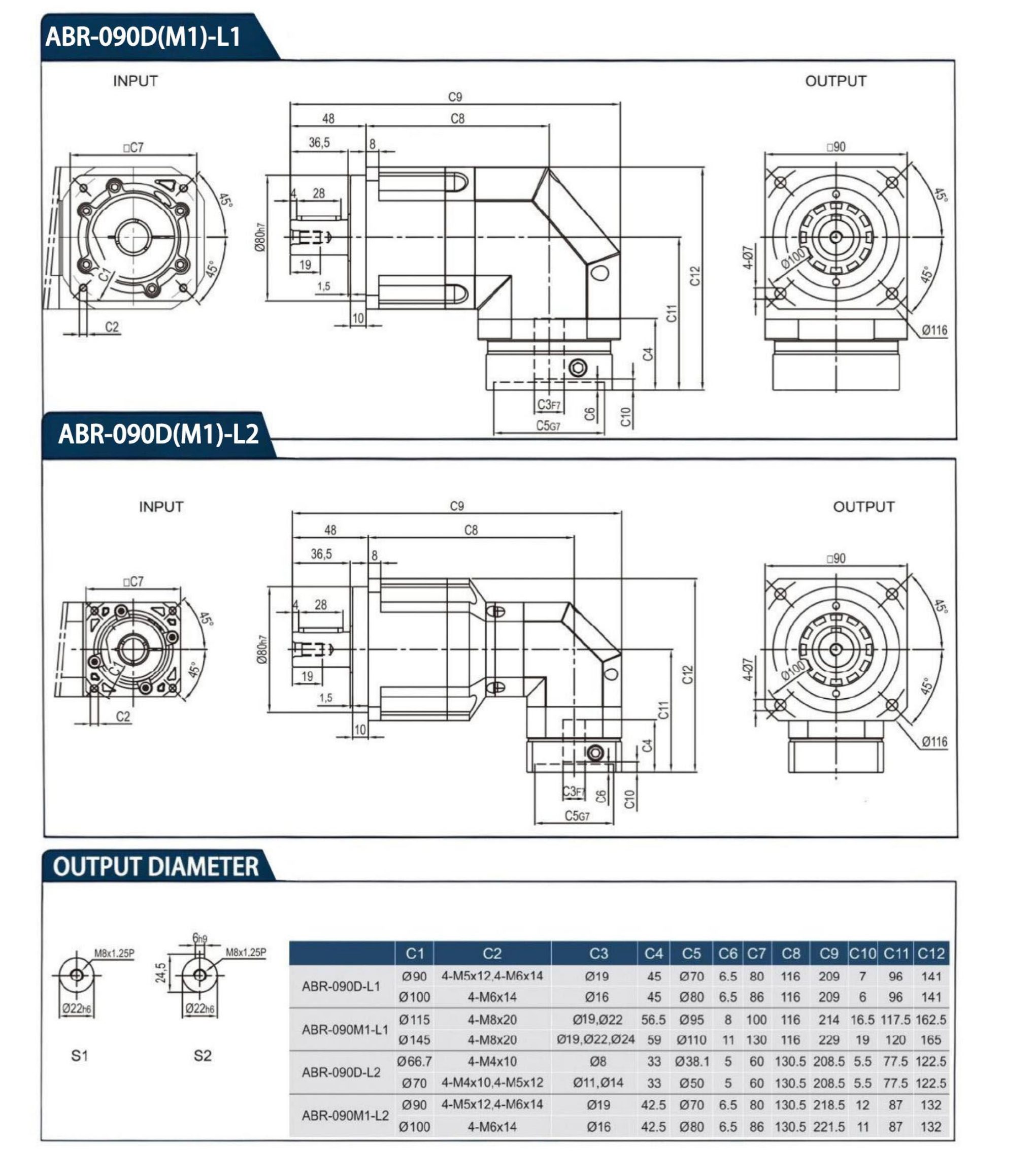

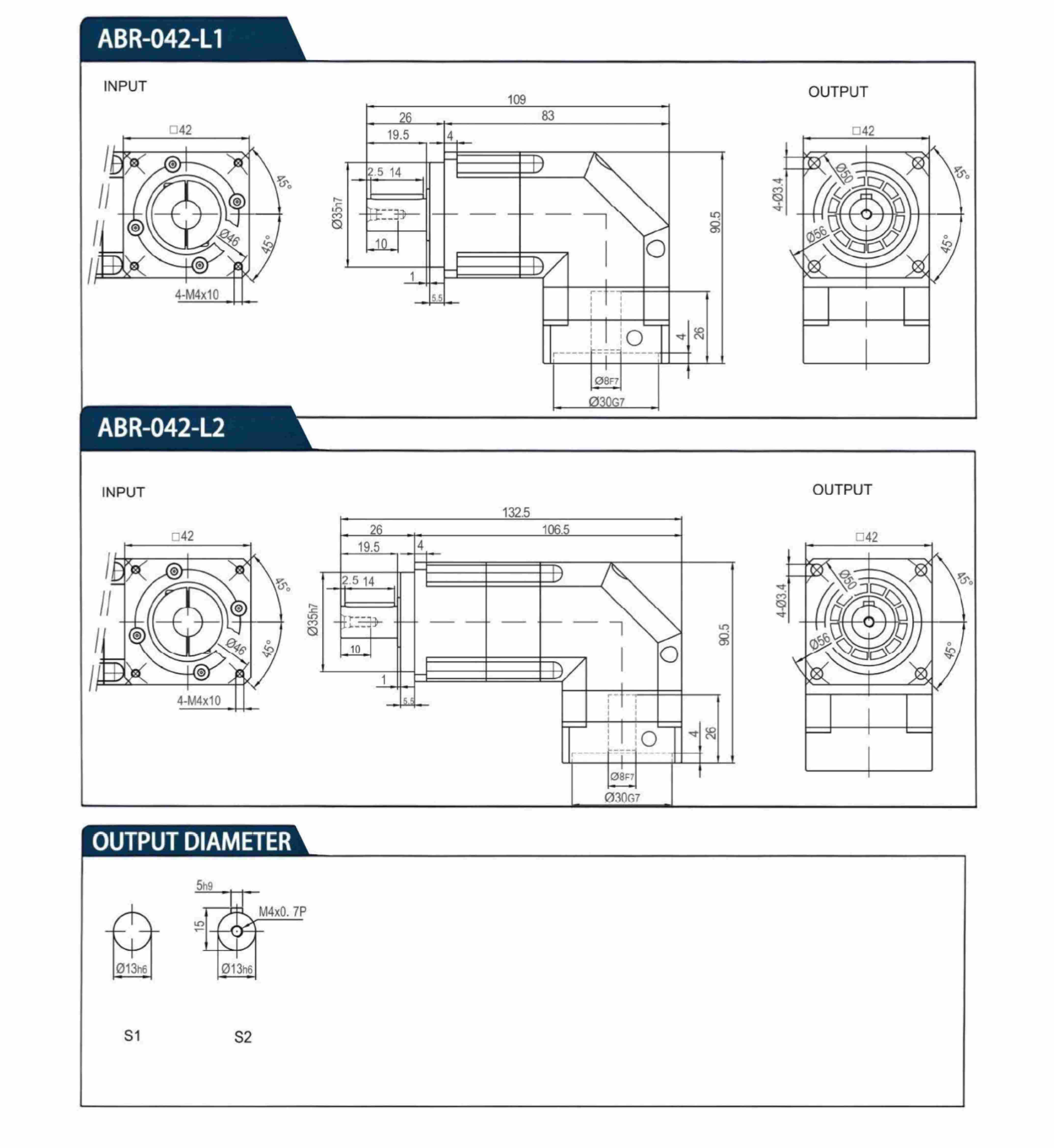

Frame size

The ABR gearbox combines precision planetary gearing with high-efficiency bearing technology to deliver exceptional high-speed performance. Its helical and hypoid gearing ensures smooth, quiet operation with minimal vibration, high synchronization accuracy, and reliable performance under extreme loads. Designed as a right-angle gearbox, it features permanent lubrication and supports multiple mounting configurations, offering outstanding efficiency and reliability across diverse applications.

Features



 High-Precision Series


 90-Degree Gearbox


 Helical Tooth Design


 Heavy-Duty Deep Groove Ball Bearings


 Reinforced rotating shaft oil seal


 Enhanced super wear-resistant tooth surface technology



 Long-Length Locating Sleeve


 Integrated structure of sun gear and input shaft


 Integrated double support design planet carrier

GEAR BOX PERFORMANCE INFORMATION

  Stage Ratio ABR042 ABR060 ABR090 ABR115 ABR142 ABR180 ABR220
Normal output torque  Nm 1  3 20 55 130 208 342 588 1,140
4 19 50 140 290 542 1,050 1,700
5 22 60 160 330 650 1,200 2,000
6 20 55 150 310 600 1,100 1,900
7 19 50 140 300 550 1,100 1,800
8 17 50 140 290 542 1,000 1,600
10 14  60 60 330 650 520 1,220
14 - 50 140 300 550 1,100 1,800
20 - 40 100 230 450 520 1,220
2  12 20 55 130 208 342 588 1,140
15 20 55 130 208 342 588 1,140
20 19 50 140 290 542 1,050 1,700
25 22 60 160 330 650 1,200 2,000
30 22 55 130 208 342 1,200 2,000
35 22 60 160 330 650 1,200 2,000
40 22 50 140 290 542 1,200 2,000
50 22 60 160 330 650 1,200 2,000
60 22  55 150 310 600 1,200 2,000
70 22 60 160 330 650 1,200 2,000
80 22 50 140 290 542 1,200 2,000
100 22 60 160 330 650 1,200 2,000
120 - - 150 310 600 1,100 1,900
140 - - 140 300 550 1,100 1,800
160 - - 120 260 500 1,000 1,600
200 - - 100 230 450 520 1,220
Maximum output torque
Nm		 1.2 3~200 3 times nominal output torque
Normal input speed rpm 1.2 3~200 5,000 5,000 4,000 4,000 3,000 3,000 2,000
Maximum input speed rpm 1.2 3~200 10,000 10,000 8,000 8,000 6,000 6,000 4,000
Backlash  PO arcmin 1  3~20 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2 ≤2
2 12~200 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4
Backlash P1 arcmin 1  3~20 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4 ≤4
2 12~200 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7 ≤7
Backlash P2 arcmin 1  3~20 ≤6 ≤6 ≤6 ≤6 ≤6 ≤6 ≤4
2 12~200 ≤9 ≤9 ≤9 ≤9 ≤9 ≤9 ≤7
Torsional stiffness Nm/arcmin 12 3~200 3 7 14  25 50 145 225
Maximum radial force  N   3~200 780 1,530 3,250 6,700 9,400 14,500 50,000
Maximum axial force F2A1 N   3~200 350 630 1,300 3,000 4,000 6,200 35,000
Maximum axial force F2A2 N
3~200
390
765		 1,625 3,350 4,700 7,250 25,000
Service life  h   3~200 20,000*
Efficiency at full load % 1 3~20 ≤95%
2  12~200 ≤92%
Gearbox weight   1 3~20 0.9 2.1 6.4 13 24.5 51 83
2  12~200 1.2  2.5  7.8  14.2  27.5  54  95
Operating temperature
℃		 1.2 3~200 -10℃~+90℃
Standard lubrication   1.2 3~200 Synthetic grease
Protection class   1.2 3~200 IP65
Installation position   1.2 3~200 Any
Running noise(n=3000rpm) dB 1.2 3~200 ≤61 ≤63 ≤65 ≤68 ≤70 ≤72 ≤74
  Stage Ratio ABR042 ABR060 ABR090 ABR115 ABR142 ABR180 ABR220
Mass moment of inertia    kg ·cm² 1  3～7 0.09  0.35  2.25  6.84  23.4  68.9  135.4
8~10 0.09 0.07 1.87 6.25 21.8 65.6 119.8
14~20 - 0.07  1.87  6.25  21.8  65.6  119.8
2  12~40 0.09 0.09 0.35 2.25 6.84 23.4 68.9
50  0.09  0.09  0.31  1.87  6.25  21.8  65.6
60 0.09 0.09 0.35 2.25 6.84 23.4 68.9
70~100 0.09 0.09 0.31 1.87 6.25 21.8 65.6
120～200 - - 0.31  1.87  6.25  21.8  65.6

Diverse Output Shaft Options

 Keyed output shaft (parallel key)
 Non-keyed output shaft

Mechanical Backlash

Standard gear clearance
Minimized backlash



Lubrication Protocol

 Industrial-grade grease
 Food-safe lubricant
 Cryogenic lubricant

Surface Treatment

 Standard coating
 Electrostatically applied paint



Advanced Locking Mechanisms

 Inertia-reduced clamping
 Shaft diameter-specific clamp

Drive Input

 Motor interface customization
